Propeller stirring rotors
For various applications

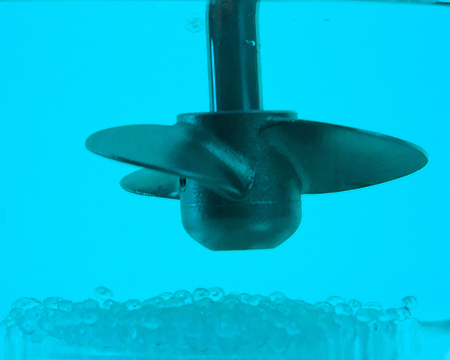

The propeller is a well-known stirring rotor that is widely used for low viscosity fluids or suspensions. Typical for propellers are three rounded blades and the mainly axial flow pattern. This effect can be increased by using a guide ring.
Technical details
Types of mixing
Homogenising
Suspending
Heat exchange
Viscosity
Low viscosity fluids
Medium to high viscosity fluids
Speed range
Low (80 - 250 rpm)
Medium (400 - 1.500 rpm)
High (600 - 3000 rpm)
Flow type
Axial
Flow direction depending on the blade angle
Dynamic flow
Materials
1.4404 AISI 316L
1.4571 AISI 316Ti
1.4602 Hastelloy® C22
PTFE-coated
Recommended stirrer size in relation to the container diameter
0,1 - 0,5
Available sizes Ø
45 - 400 mm

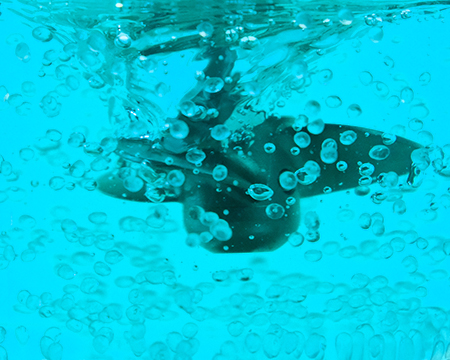

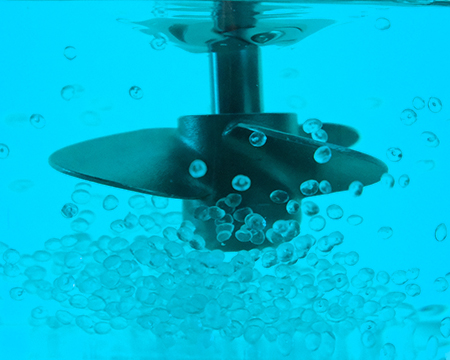

The application area of a propeller is versatile. It is suitable for homogenising low viscosity liquids or suspensions and provides a proper heat exchange. The flow is directed from the bottom of the container to the walls and up to the top. The stirring medium accelerates downwards at the propeller head.
Main area of application:
Main area of application:
- Chemical industry
- Food industry
- Pharmaceutical and cosmetics industry
- Process engineering
