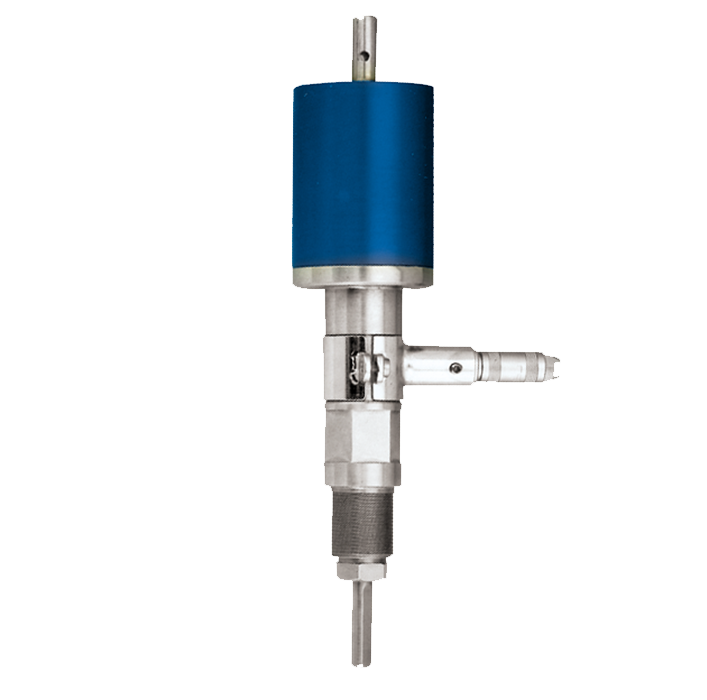

Magnetic stirrer couplings BUK Mini with thread
Easily be screwed into an autoclave lid
Sealing to the autoclave lid is achieved using an o-ring (FFKM) or cutting ring (HC 22) which is not included with delivery. Please choose desired version.
A reed contact and speed sensor at the output shaft is fitted as standard.
BUK Mini series permanent magnetic couplings provide a space-saving installation with their compact design. Ball bearings ensure rapid, easy replacement to facilitate maintenance and cleaning.
BUK Mini series permanent magnetic couplings provide a space-saving installation with their compact design. Ball bearings ensure rapid, easy replacement to facilitate maintenance and cleaning.
Technical details
Thread
M18 x 1
Pressure (max.)
Up to 700 bar
Volume (max.)
Up to 500 milliliters
Up to 1.000 milliliters
Up to 5.000 milliliters
Viscosity
Up to 1.500 m Pa s
Up to 10.000 m Pa s
Up to 30.000 m Pa s
Speed
Low (Up to 150 rpm)
Medium (Up to 2.000 rpm)
High (Up to 2.500 rpm)
Materials (more on request)
Stainless steel
HC22®
Titanium
Zirkonium
Bearings
Ball bearings stainless steel
Slide bearings PTFE/carbon
Special versions tailored to your wishes
Yes
No
