BUK magnetic stirrer couplings with thread
Easily be screwed into an autoclave lid

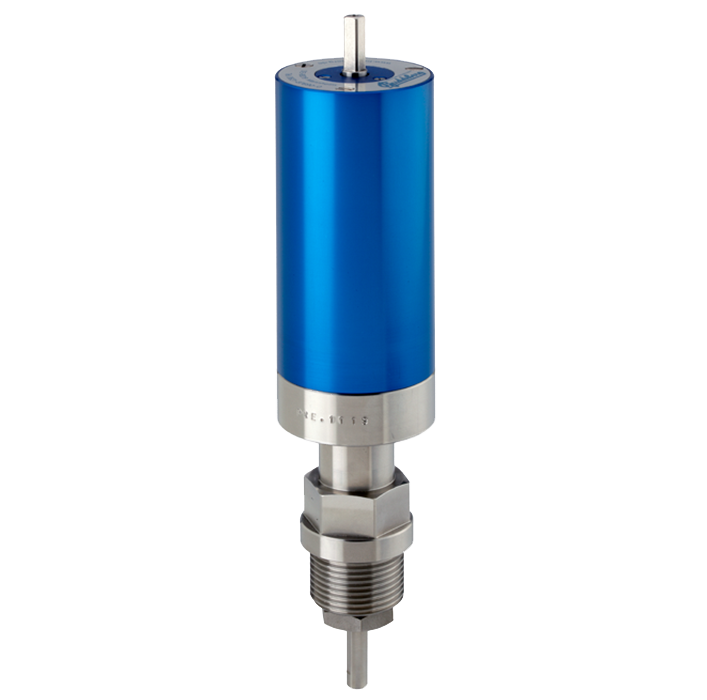

A magnetic stirrer coupling with M30x2 thread connection which can easily be screwed into an autoclave lid. Sealing to the autoclave lid is achieved using a cutting ring (HC 22)*, see accessories.
A reed contact and speed sensor at the output shaft is fitted as standard.
The thread series permanent magnetic couplings provide a space-saving installation with their compact design. Ball bearings ensure rapid, easy replacement to facilitate maintenance and cleaning.
The thread series permanent magnetic couplings provide a space-saving installation with their compact design. Ball bearings ensure rapid, easy replacement to facilitate maintenance and cleaning.
Technical details
Thread
M30 x 2
Pressure (max.)
Up to 700 bar
Volume (max.)
Up to 500 milliliters
Up to 5.000 milliliters
Up to 20.000 milliliters
Viscosity
Up to 1.500 m Pa s
Up to 10.000 m Pa s
Up to 30.000 m Pa s
Speed
Low (Up to 150 rpm)
Medium (Up to 1.150 rpm)
High (Up to 2.500 rpm)
Materials (more on request)
Stainless steel
HC22®
Titanium
Zirkonium
Bearings
Ball bearings stainless steel
Slide bearings PTFE/carbon
Special versions tailored to your wishes
Yes
No
