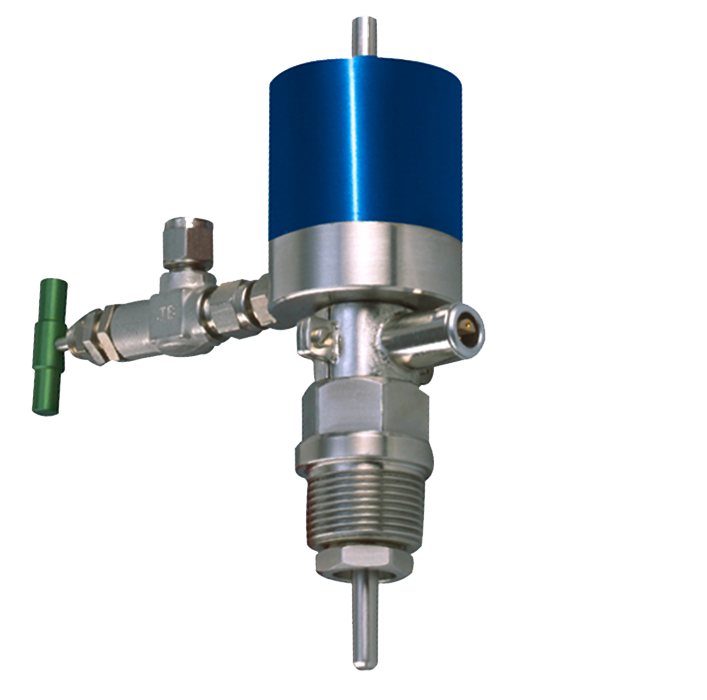

Magnetic stirrer coupling BUK with thread and valve

Additional purging gas connection valve

An additional purging gas connection valve is fitted laterally to this magnetic stirrer coupling. The mounting onto an autoclave lid is by means of the M30x2 thread connection. Sealing to the autoclave lid by a cutting ring (HC 22)*, see accessories. A reed contact and speed sensor at the output shaft is fitted as standard.
Technical details
Thread
M30 x 2

Pressure (max.)
Up to 700 bar
Volume (max.)
Up to 500 milliliters
Up to 5.000 milliliters
Up to 20.000 milliliters
Viscosity
Up to 1.500 m Pa s
Up to 10.000 m Pa s
Up to 30.000 m Pa s
Speed
Low (Up to 150 rpm)
Medium (Up to 1.500 rpm)
High (Up to 2.500 rpm)
Materials (more on request)
Stainless steel
HC22®
Titanium
Zirkonium
Bearings
Ball bearings stainless steel
Slide bearings PTFE/carbon
Special versions tailored to your wishes
Yes
No
