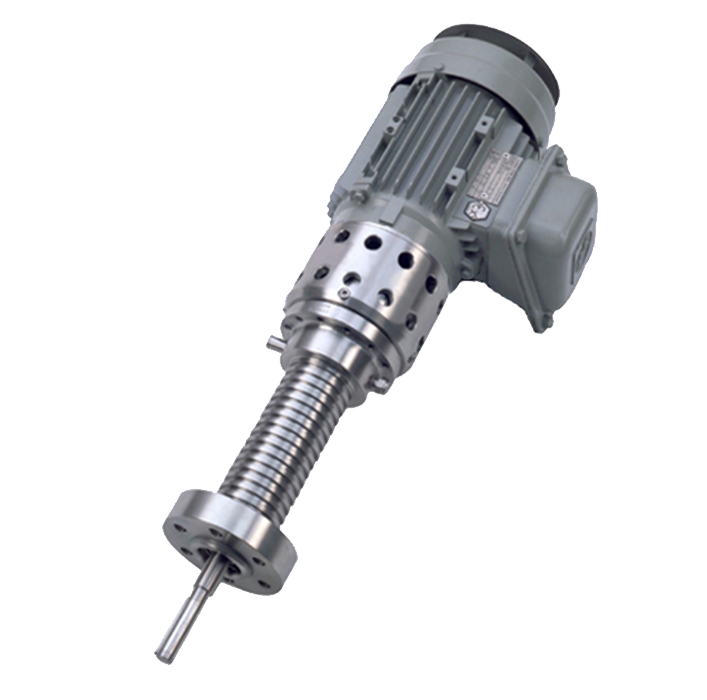

Magnetic stirrer drives BUK complete
Speed control by frequency converter up to 700 bar
Their constructional design allows use with reactors up to 700 bar and torques up to 150 Nm. All parts coming into contact with the medium are made of stainless steel. A bore with blind plug is positioned laterally to fit an optional valve.
The sealing to the autoclave lid is metal to metal.
Speed control of the 3-phase, a.c. motor (supply req. 3x240/400 V, 50 Hz) by frequency converter. A speed monitor incorporating a pulse generator and reed contact is fitted to the output shaft as standard.
Speed control of the 3-phase, a.c. motor (supply req. 3x240/400 V, 50 Hz) by frequency converter. A speed monitor incorporating a pulse generator and reed contact is fitted to the output shaft as standard.
Technical details
Pressure (max.)
Up to 10 bar
Up to 200 bar
Up to 700 bar
Torque (max.)
Up to 8 Ncm
Up to 90 Ncm
Up to 800 Ncm
Temperature (max.)
Up to 240 °C
Up to 250 °C
Up to 300 °C
Materials
Stainless steel (1.4435 or 1.4980)
Hastelloy®
Titanium
Zirconium
More on request
Bearings
Ball bearings stainless steel
ATEX certification
On request
Special versions tailored to your wishes
Yes
No
