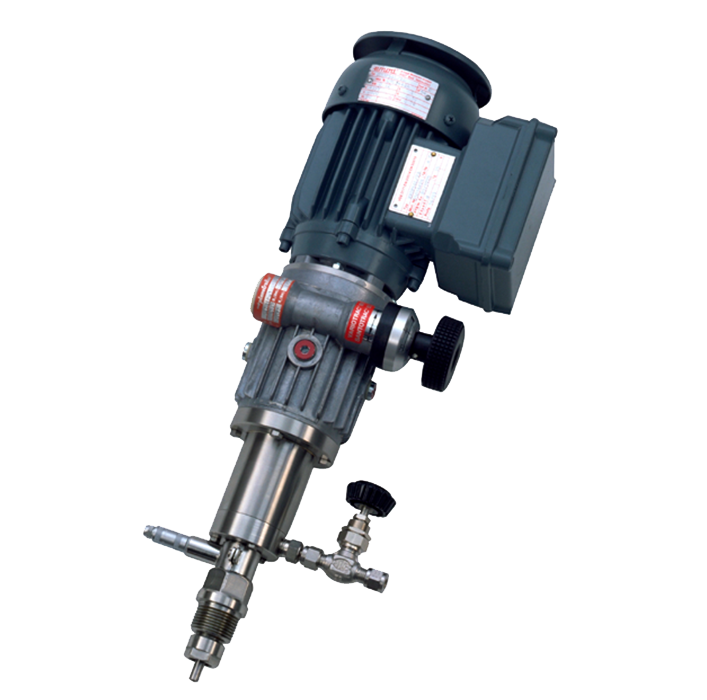

Magnetic stirrer drives BUK complete with gear system

Manual speed control by hand wheel

The use of a cardan coupling is unnecessary, meaning both vibrations and the installation height are reduced. A speed monitor incorporating a pulse generator and a reed contact is fitted to the output shaft as standard. Speed control of the 3-phase, a.c. motor (supply req. 3x240/400 V, 50 Hz) is by ball-roller gear system with hand wheel.
Technical details
Volume (max.)
Up to 5 liter
Up to 10 liter
Pressure (max.)
Up to 10 bar
Up to 200 bar
Up to 700 bar
Torque
Up to 8 Ncm
Up to 90 Ncm
Up to 150 Ncm
Temperature (max.)
Up to 240 °C
Up to 250 °C
Up to 300 °C
Materials
Stainless steel (1.4435 or 1.4980)
Hastelloy®
Titanium
Zirconium
More on request
Bearings
Ball bearings stainless steel
ATEX certification
On request
Special versions tailored to your wishes
Yes
No
